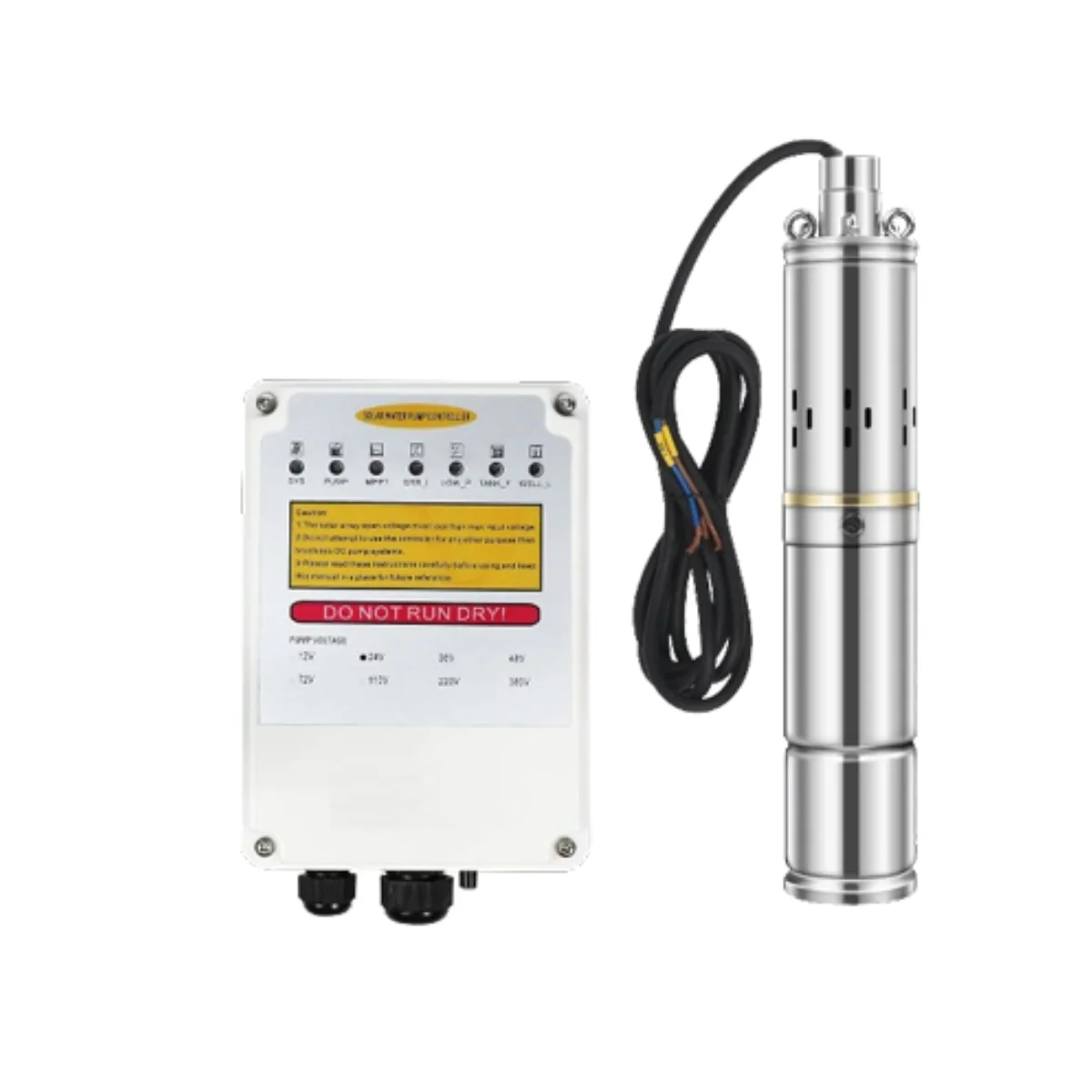

Bundu Power 100m 24V Solar Borehole Eco Pump

FEATURES

• 100% OFF GRID Solution
• NO Batteries or AC Required
• NO Timers required
• MPPT Controller
• * Optional AC Power Supply

SPECIFICATIONS

Model JS3-1.8-100-ECO Voltage 24 V Power 270 Watts Max Flow Rate 1.8 m³/h Max Head 100 m Warranty 12 Months

GENERAL DATA

Outlet 19mm (0.75 in) Pump Diameter 76 mm Type of Pump Screw Submersible Depth 30 m Controller Input Voltage 24V - 63V (VoC) What's Included Pump, Controller, Float Level Switches and 6m Cable

PACKED DIMENSIONS

Length 450 mm Width 305 mm Height 150 mm Weight 7.5 kgs

SOLAR PANEL REQUIREMENTS

PANELS VOLTAGE (VMP) QTY 545 Watts 49.4 V 1

What is included:

• 1 x Bundu Power Cable Joint Kit
• 1 x Bundu Power 2 Way Pump Box

PLEASE NOTE: Submersible Cabler (6mm 3 Core) sold separately.

KEY POINTS

Solar Panels oversized by 30%. i.e: A 500Watt pump should use 650Watts of Panels

Output based on 5.5 hours a day at max capacity. The pump will run longer, but slower in the mornings and evenings.

Submersible Depth = How far beneath the surface of the water. Not depth of the borehole.
