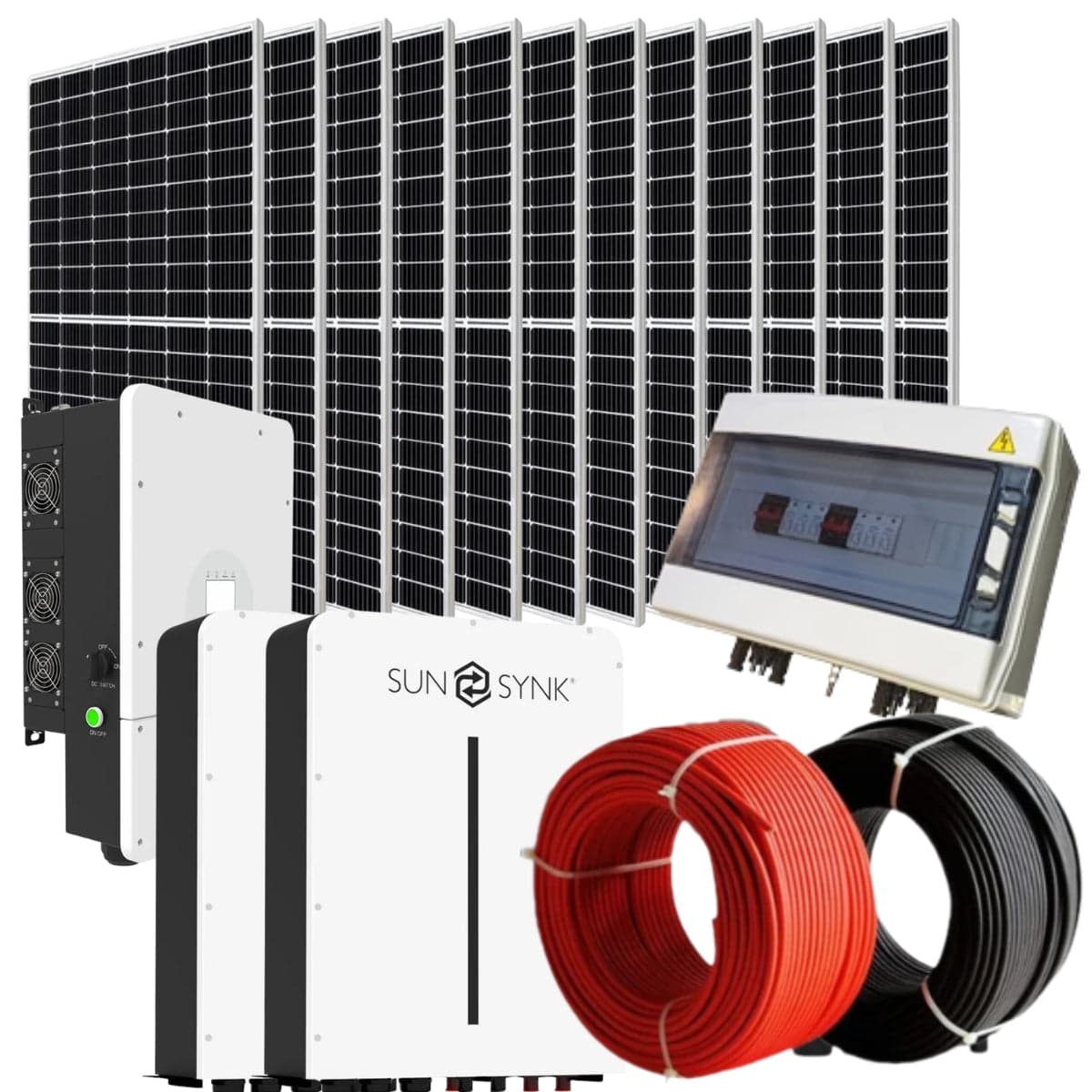

Sunsynk 8kW 10.24kWh 51.2V Self Consumption Solar Power System

Maximize Your Solar Energy Usage with the SunSynk 8kW 10.24kWh 51.2V Self Consumption Solar Power System. Achieve peak efficiency and reliability with the SunSynk 8kW 10.24kWh 51.2V Self Consumption Solar Power System. Designed for professional-grade performance, this system generates an estimated annual output of 11,936kWh, utilizing advanced PV Performance Estimation and New MCS Calculation.

System Highlights

• Installed Capacity (kWp, STC): 9,440 Wp
• Orientation: 0° from North
• Inclination: 35° from horizontal
• Shade Factor (SF): 1.00
• Estimated Annual Output: 13,700 kWh and 15,500 kWh

Kit Components

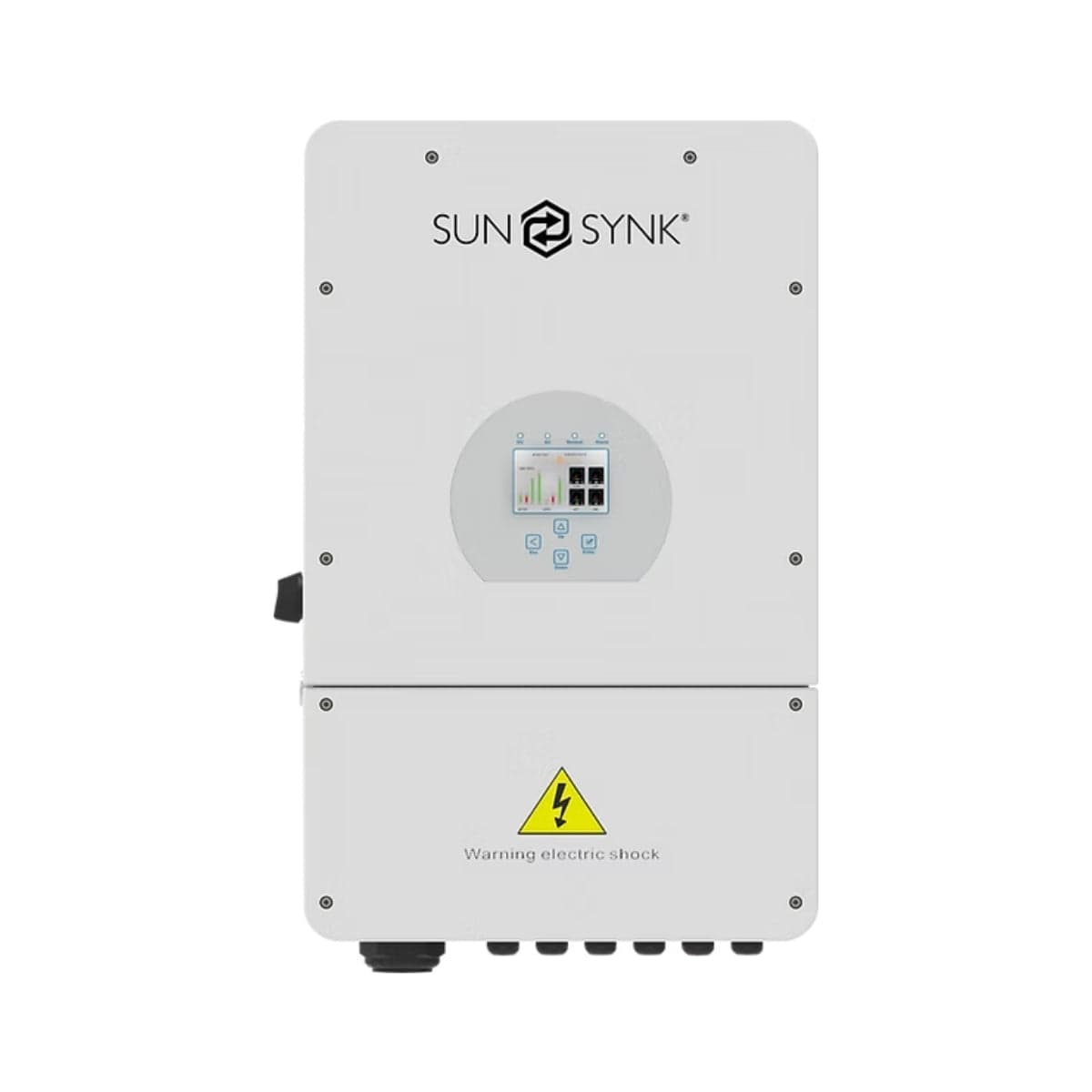

• 1 x SunSynk 8KW 48V Single Phase Hybrid Inverter
• 2 x Sunsynk X Series 5.1kWh 51.2V Lithium Battery
• 16 x Jinko Tiger Neo 590W TOPCon N-Type Dual Glass Bifacial Solar Panel
• 1 x PV on Roof and Hazard Labels Pack
• 6 x MC4-EVO2 Connector Twin Pack
• 6 x MC4 Pre-terminated Cable (2m)
• 2 x K&N 40A Single Phase AC Switch Disconnector
• 1 x Earth Neutral Bridge Single Phase 50A AC Protection Box
• 1 x 600V Protection Box (2 Inputs, 2 Outputs, 16A Isolator Type I_II SPD)
• 2 x Sustainable 70mm² Single-core HV DC Cable (1m - Pair)
• 50m x Sustainable 4mm² Black Double Insulated Halogen Free Solar Cable
• 50m x Sustainable 4mm² Red Double Insulated Halogen Free Solar Cable

Solar Panel Specifications

• Nominal Max. Power (Pmax): 590W
• Opt. Operating Voltage (Vmp): 44.17V
• Opt. Operating Current (Imp): 13.36 A
• Open Circuit Voltage (Voc): 52.90 V
• Short Circuit Current (Isc): 14:07 A
• Module Efficiency: 22.8%
• Operating Temperature: -40°C ~ +85°C
• Max. System Voltage: 1500V DC (IEC)
• Module Fire Performance: TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730)

Inverter Specifications - SunSynk 8K Hybrid Inverter

• Phases: 1
• Number of MPPT: 2
• Rated AC Power: 8,000 W
• Max DC Current: 35.50 A
• Voltage: 500 V
• PP Voltage: 125 V - 425 V Max

Electrical Specifications - SunSynk 8K Hybrid Inverter

• Quantity: 1
• String Quantity: 2
• Strings Configuration: (1x12) (1x12)
• String Voc at 0°C: 519.6 V
• Input Isc at 80°C: 10.02 A
• Distance to Array: 12 m
• Cable Area: 6 mm²
• Voltage Drop: 0.51%

Battery Specifications - Sunsynk X Series 5.1kWh 51.2V Lithium Battery

• System Type: Full Hybrid
• Battery Type: Lithium-Ion
• Usable Battery Capacity: 5120 Wh
• Voltage: 51.2V
• Max Charge Current: 50 A
• Max Discharge Current: 100 A
